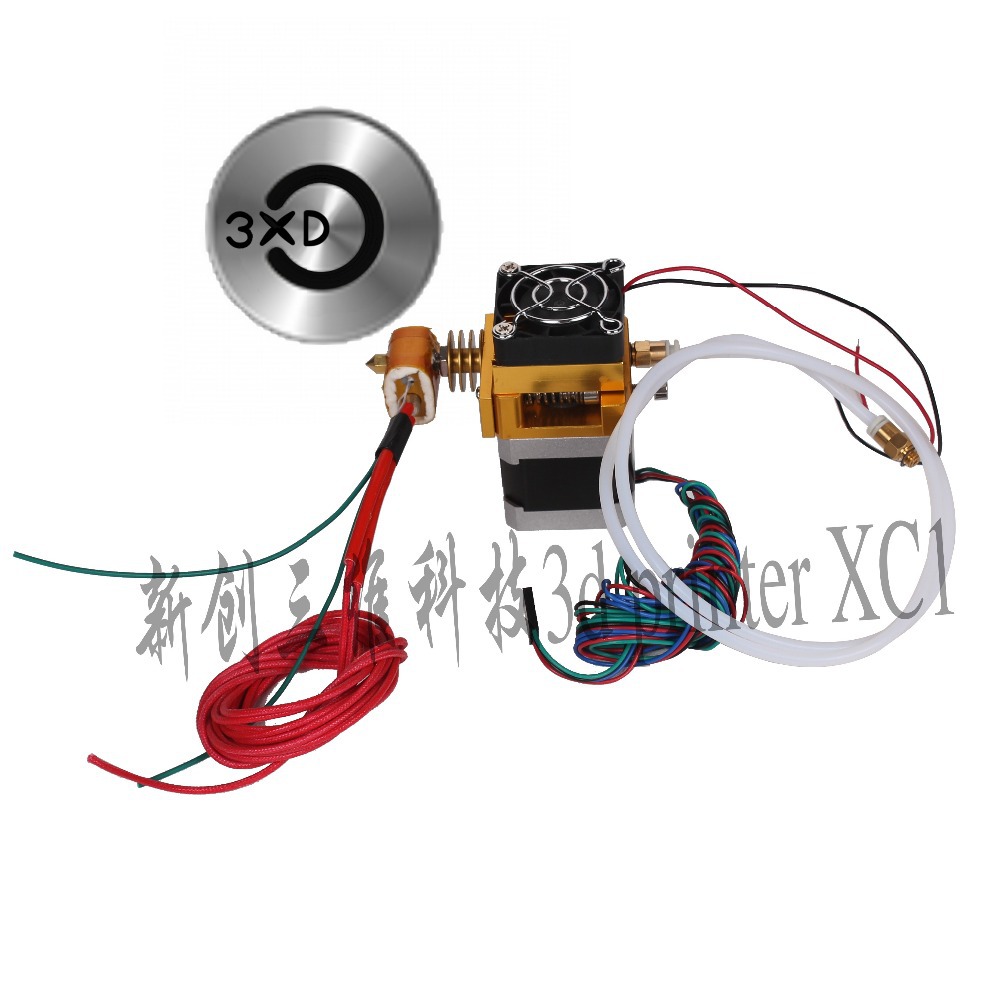

Ultimaker 12v 100k Mk8 Latest Update 3d Printer Extruder Fit For Reprap Diy Prusa Mendel Makerbot Printers Kit
|45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.|
Guarantees: On-time Delivery 60 days
1 default shipping 12v 3950 100k ntc thermistor accuracy of plus or minus 1%
2. 24v 100k 3950 100k ntc thermistor accuracy of plus or minus 1%
3. 12v k -type thermocouple
4. 24v k -type thermocouple
This upgrade has the following advantages:
1 Feeding protective gear
2 pipes built- ptfe pipe
3 External aluminum metal heat combination
4 elastic feeding structure
5 supports multiple supplies
6. -oriented lubrication supplies dust protection tube
7 does not slip plug wire
8 independent design optimization and upgrading version
A new technology to create three-dimensional nozzle easy instructions before use
1 , first preheat the feed prior to extrusion or the pla optimum temperature heating melting point of abs (pla180 ° -220 ° abs225 ° -255 ° temperature is too low or too high, the material will not ring true )
2 , the motor drive current is transferred to the rated maximum current slightly lower position of the new technology to create three-dimensional feeding motor specifications 42 42 40 maximum current is 1.7A
3 , extrusion machine motor stepper motor pulse value calculation parameters 200 16 ( subdivision ) /3.14 (π) /10.95mm≈93.06925 ( pulse )
3 , the replacement material, when removing the material it is recommended to start feeding program , so that the nozzle normal silk , silk spray nozzle properly , the feed tube material continuity is better, and then select Remove plastic wire program . This helps remove the plastic wire properly .
4 , during the replacement of materials, not too large force to the nozzle filled with plastic wire , or remove the material is not too large forces pull the pull plastic wire , which are likely to pull off the plastic wire and left in the nozzle or feed passage and cause clogging.
Third, the new technology to create three-dimensional nozzle discharge nozzle is not smooth face how to solve ?
1 , supplies quality problems led to the discharge ring true Due to the different prices from different manufacturers quality supplies ranging from ( a roll of consumable supplies inside temperature of different diameters or impurities )
Approach: for a good point of supplies manufacturers such as pla you use more than 220 degrees can not properly melted proposed to replace (if your temperature is normal , for example to detect normal room temperature display ) Method ( 1 ) to manually adjust the temperature of the nozzle 240 , remove the front fan , when the temperature is reached, the manual feed throat to the extruded plastic wire , the wire so that the nozzle properly . Then pull out the plastic wire , into the feed throat again , wait a plastic wire melted plastic wire pulled out to make the semi-molten plastic filament residue in the nozzle out . Repeated the operation several times.
Method ( 2) is less than the wire diameter of the nozzle or the needle to clear the nozzles. Then continue to approach a
