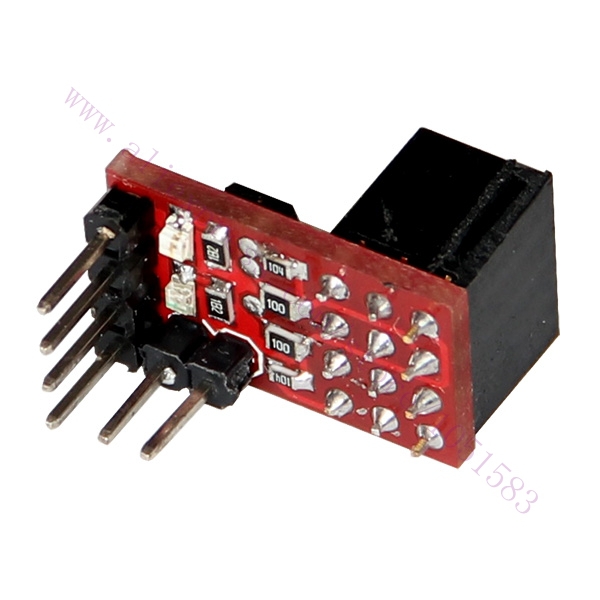

3D Printer RRD Fan Expansion Module Reprap / Ramps1.4 3D Printer Fan Module Free Shipping

3D Printer RRD Fan Expansion Module Reprap Ramps1 4 3D Printer Fan Module Free Shipping
Click to see details
3D Printer RRD Fan Expansion Module Reprap Ramps1 4 3D Printer Fan Module Free Shipping
3D Printer RRD Fan Expansion Module Reprap Ramps1 4 3D Printer Fan Module Free Shipping
3D Printer RRD Fan Expansion Module Reprap Ramps1 4 3D Printer Fan Module Free Shipping
100 % of buyers enjoyed this product!
Availability: in stock
TODAY'S DEAL Ends in: 04:36:18
Price:  US $9.98 / piece
Sale price:  US $9.18 / piece


from AliExpress

45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Share:

If you build or upgrade your printer with/to DUAL-EXTRUSION (2 extruder) including a heated bed all the output ports (D8,D9,D10) will be used.

In this case there is not option to connect a firmware controlled FAN to RAMPS board directly. However in Sprinter/Marlin firmware there is an option already (Marlin: BOARD=34) which redirects the FAN to RAMPS output D4. But this solution needs a “buffer/driver”in order to work. The RRD-FAN-EXTENDER is exactly what you need in this case.

It is a plug and play solution to mount the FAN for DUAL-EXTRUSION setups with RAMPS1.4. But instead of adding only one additional output port the RRD-FAN-EXTENDER is equipped with 2 PWM controllabe channels(D6/D11).

The second channel can be used for another fan (e.g. to cool the stepper driver) or for adding light control (e.g. add dimmable LED light to your machine).

Features: max 20V 2 (PWM controllable) channels (D6/D11) max 0.5A per channel (enough for a really big fan) flexible output voltage (you can connect the RRD-FAN-EXTENDER to 12V,5V,… in order to support the output voltage you need) each channel has a fly back diode easy setup (plug and play) already supported by Marlin firmware (choose “#define MOTHERBOARD 34”) easy to adapapt to other firmware (e.g. Sprinter: just change “#define FAN_PIN 6” in “pins.h”) TEST Test the Editing Reprap Ramps1.4 RRD Fan Extender Hardware required: -Ramps 1.4 -Mega2560 1.Upload Test for Editing Reprap Ramps1.4 RRD Fan Extender to your Mega. void setup() { pinMode(11, OUTPUT); pinMode(6, OUTPUT); } void loop() { digitalWrite(11, HIGH); digitalWrite(6, LOW); delay(5000);

digitalWrite(11, LOW); digitalWrite(6, HIGH); delay(5000); } 2.Connecting 3. Power up ,two fans will take turns to rotate
