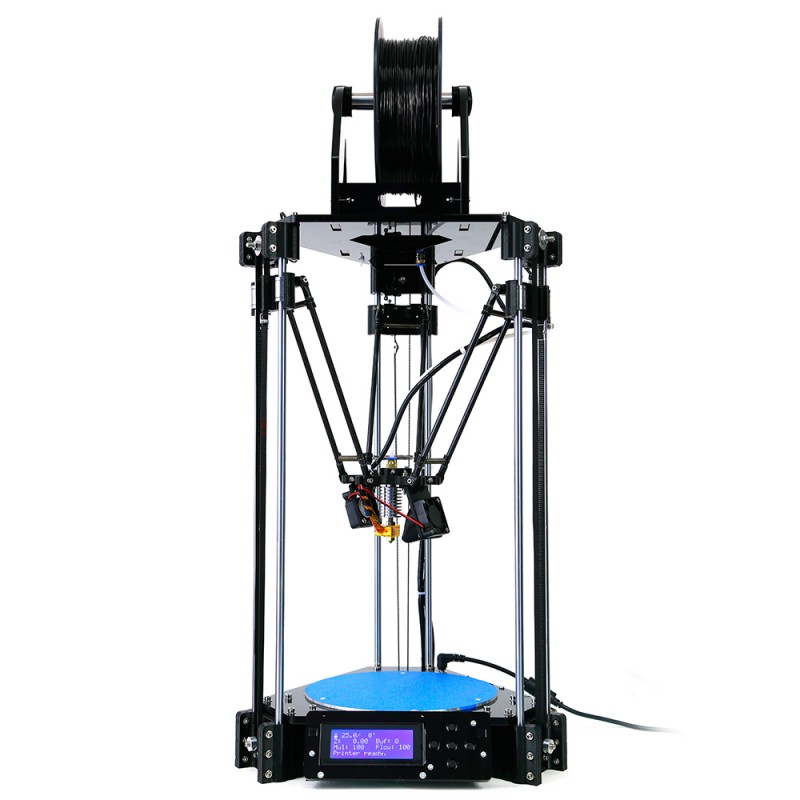

3D Printer ROSTOCK Mini Pro Replicator Machine PLA/ABS with LCD Controller set w/ SD RAMPS

3d printer impressora 3d Delta 3D Printer Rostock Mini pro RepRap Replicator Machine with LCD Controller
Click to see details
3d printer impressora 3d Delta 3D Printer Rostock Mini pro RepRap Replicator Machine with LCD Controller
3d printer impressora 3d Delta 3D Printer Rostock Mini pro RepRap Replicator Machine with LCD Controller
3d printer impressora 3d Delta 3D Printer Rostock Mini pro RepRap Replicator Machine with LCD Controller
3d printer impressora 3d Delta 3D Printer Rostock Mini pro RepRap Replicator Machine with LCD Controller
3d printer impressora 3d Delta 3D Printer Rostock Mini pro RepRap Replicator Machine with LCD Controller
80 % of buyers enjoyed this product!
Availability: in stock
Price:  US $299.00 / piece


from AliExpress

45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Share:

2015 newest Delta 3D Printer Rostock RepRap Replicator Machine with LCD Controller set w/ SD RAMPS Fully DIY Kit + Free PLA

PLS contact our sales person for more pics.

skype: jackie_foremost

PRODUCT DESCRIPTION 3D Printer Rostock mini pro

Rostock Mini is a delta 3D Printer originally designed by Bwevans, with smaller build volume compared to a Rostock or Kossel, but much more compact, portable, and desktop friendly. We improved Rostock mini with carbon fibre arms, Traxxas 5347 u-joints, and a extruder. The top and bottom plates are made from 6mm acrylic sheet to give strong support of the entire frame.This is a complete machine

Parameters Specifications:

1.FormingTech: FDM

2.Build Size: 160*160*180mm(Max)

3.Nozzle Diameter: 0.4mm

4.Precision: X, Y ,Z 0.01mm

5.printing speed: 180mm/s

6.Print thick: 0.1–0.4mm

7.Filament support: PLA ABS

8.Operating System : WIN7, WIN8

9.System Platform: Cura

10.File Format: STL

11.Power Input:110220 (V)

12.Port Input: USB

13.Offline Print: support

14.Dimensions: 250*250*490mm

15.weight:About 9 KG

Note: Parts and components for DIY , need assemble by yourself !

Rosotck Mini Pro Technical Details: 3D Printer Rostock mini pro

Build Volume: 160mm x 160mm x 180mm cylinder Delta 3D Printer Rostock RepRapelta 3D Printer Rostock RepRap

Heatbed: PLA is the recommended filament Delta 3D Printer Rostock RepRap

extruder: Bowden extruder set up with planetary gearbox coupled Nema 17 motor Delta 3D Printer Rostock RepRap

Included in the Rostock Mini Pro : 3D Printer Rostock mini pro

Mechanical: 3D Printer Rostock mini pro

8mm hardened precision rod (49cm) x 6 Delta 3D Printer Rostock RepRap

GT-2 belt and 36-teeth pulleys x 3 Delta 3D Printer Rostock RepRap

pneufit push-in fittings for bowden extrusion x 2 Delta 3D Printer Rostock RepRap

3K carbon fibre hollow tubes x 6 Delta 3D Printer Rostock RepRap

Traxxas 5349 u-joints x 12 Delta 3D Printer Rostock RepRap

Electrical: 3D Printer Rostock mini pro

Assembled RAMPS 1.4 w/ 4 Pololu steppers Delta 3D Printer kit

12V 10A laptop power charger Delta 3D Printer kit

Nema 17 motors with 0.55 N*m torque x 3 Delta 3D Printer kit

Nema 17 motor coupled with a planetary gearbox Delta 3D Printer kit

J-head MKIV hotend (0.4mm orifice, 1.75mm filament opening)

FAQ for Rosotck Mini Pro 3D Printer Rostock mini pro

1. What are the advantages of having a Delta styled RepRap ? 3D Printer Rostock mini pro

Delta RepRap such as Rostock Mini can print very fast due to the unique mechanical structure. It’s easier to assemble and more professional-looking than traditional Cartesian RepRaps. It’s also very fun to watch the Rostock Mini Pro print.

2. What are Traxxas 5347 u-joints? 3D Printer kit

Traxxas 5347 u-joints are mostly used in airplane models to give smooth movements. These are ball-socket joints that create very little friction when your Rostock Mini Pro’s arms move.

3. Why carbon fibre arms? 3D Printer Rostock mini pro

It’s super strong, light, and cool.

4. What about the Software? 3D Printer kit

You can use standard open-source software such as Repetier-host to control the Rostock Mini Pro.

5. What is a planetary gearbox coupled Nema 17 motor? 3D Printer Rostock mini pro

This is a Nema 17 motor with a built-in gearbox to increase output force. Traditional RepRaps use a printed gearbox structure (such as in Greg’s extruder) to achieve the same end; however, planetary gearbox is much more precise and more reliable as well.

Assembly Build Notes 3D Printer Rostock mini pro

To see how the Rostock mini is assembled, Assembly is as follows:

  1. Begin by constructing each of the three towers, starting with the motor end, then the idler end, followed by the carriage, and then putting it all together to complete the tower.
  2. Complete the frame by attaching the motor ends of each tower to the lower frame before attaching the upper frame to the idler ends.
  3. Assemble the end effector platform, assembling and attaching the diagonal rods as you go. Delta 3D Printer kit
  4. Attach the ends of each diagonal rod to the carriages on each tower to complete the mechanical assembly.
  5. Finally, install the electronics, mount the extruder, and complete the wiring. Delta 3D Printer ki

Newest firmware is being optimized by my company ,and then loaded on mainboard, please do not upgrade The firmware by you self.

Disclaimer:

Building the printer will require a certain amount of physical dexterity, common sense and a thorough understanding of what you are doing. We have provided fully comprehensive build documentation to enable you to build your 3D Printer Kit in a safe manner.

However ultimately we cannot be responsible for your health and safety whilst building or operating the printer, with that in mind be sure you are confident with what you are doing prior to commencing with building or buying. Read all of the manual to enable you to make an informed decision.

3 REVIEWS FOR ROSTOCK MINI PRO KIT

1. TONY HO – May 11, 2014:

First to review this 3d printer rostock mini pro ! just a quick short review on this, Purchased the rostock, too roughly less than 2 weeks, delivered to NZ in perfect packaging!
First time building a 3d printer, most people would suggest to build the i3! but i fell in love with the delta movement.
The kit included everything, build this over a weekend. would be better if had better instructions but all in all figured everything else and would recommend to purchase this kit! excellent quality and a fun build, anything goes fine.

2.M YAZID (verified owner) – May 15, 2014:

Excellent communications with the guys here. Packaging was neat and professional leading to a very pretty 3d printer rostock mini pro . The lack of documentation could be fixed over time. All in all, the parts are of good quality (even the printed ones) that makes for a smooth build experience. With worldwide shipping included in the offering, this truly is a value-for-money deal. Thank You very much for the experience! Special mention for Mr Han who has been very detailed and patient with the noob questions

3.LUIS FERNANDO HURTADO PELAEZ (verified owner) –May 26, 2014:

Yo compre una Rostock Mini Pro, ya la ensamble y en realidad es muy fácil, viene con todos los accesorios y partes necesarios para ensamblarla, en estos momentos estoy en el proceso de calibración, la cual pienso es la parte mas complicada, la documentación que se puede descargar es muy básica.
La impresora visualmente es muy bonita, lo único es que hay que diseñar un accesorio para guardar los controladores para que no queden a simple vista.
