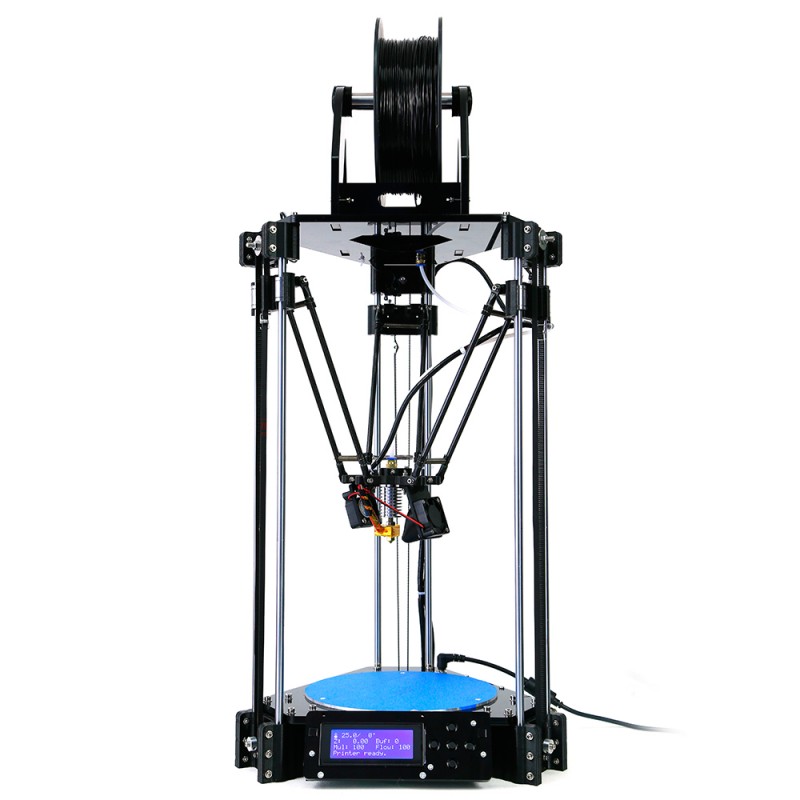

2015 Newest Reprap Delta 3D Printer Rostock Mini Pro 3 D Print DIY KIT High Accuracy with LCD Controller set w/ SD RAMPS
|45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.|
Guarantees: On-time Delivery 60 days
2015 newest Delta 3D Printer Rostock mini pro RepRap Replicator Machine with LCD Controller +
PLS contact our sales person for more pics.
2.Structure : Steel framework
3.Extruder Quantity : 1
4.Printing size : 160*160*180mm
5.Layer thickness: 0.1-0.4mm
6.SD-card : Support
7.LCD screen :support
8.XY axis speed(Max): 3000mm/min
9.Z axis speed(Max) : 200mm/min
10.Printing speed: 40-120mm/s
11.Standard extruder diameter : 0.4mm
12.Extruder temperature :170-275
14.Hot bed material : Aluminum
15.XY axis positioning accuracy: 0.012mm
16.Z axis positioning accuracy :0.004mm
17.Printing material support : PLA
18.Printing material diameter :1.75mm
19.Recommended material : PLA
20.Software language : English
21.Date import format: STL, OBJ, G-Code
22.Model supporting function: Optional
23.Machine size : 320*320*688mm
24.Machine weight :6 KG
25.Packing size :500*450*150mm
26.Packing weight :8 KG
27.AC Power supply:220V/110V 15A
28.Operating system :XP,WIN7,WIN8,MacOS
29.Printing software : Repetier-Host
Rostock Mini is a delta 3D Printer originally designed by Bwevans, with smaller build volume compared to a Rostock or Kossel, but much more compact, portable, and desktop friendly. We improved Rostock mini with carbon fibre arms, Traxxas 5347 u-joints, and a extruder. The top and bottom plates are made from 6mm acrylic sheet to give strong support of the entire frame. This is a complete kit that contains everything (including tools) to build a Rosotck Mini Pro. The mechanical part can be finished between 3-6 hours depending on your experience with RepRap machines.
Note: Parts and components for DIY , need assemble by yourself
Included in the Rostock Mini Pro : Delta 3D Printer Rostock RepRap
Mechanical: Delta 3D Printer Rostock RepRap
8mm hardened precision rod (49cm) x 6 Delta 3D Printer Rostock RepRap
GT-2 belt and 36-teeth pulleys x 3 Delta 3D Printer Rostock RepRap
pneufit push-in fittings for bowden extrusion x 2 Delta 3D Printer Rostock RepRap
3K carbon fibre hollow tubes x 6 Delta 3D Printer Rostock RepRap
Traxxas 5349 u-joints x 12 Delta 3D Printer Rostock RepRap
Electrical: Delta 3D Printer kit
Assembled RAMPS 1.4 w/ 4 Pololu steppers Delta 3D Printer kit
12V 10A laptop power charger Delta 3D Printer kit
Nema 17 motors with 0.55 N*m torque x 3 Delta 3D Printer kit
Nema 17 motor coupled with a planetary gearbox Delta 3D Printer kit
J-head MKIV hotend (0.4mm orifice, 1.75mm filament opening)
Delta 3D Printer kit
FAQ for Rosotck Mini Pro Delta 3D Printer kit
1. What are the advantages of having a Delta styled RepRap ? Printer kit
Delta RepRap such as Rostock Mini can print very fast due to the unique mechanical structure. It’s easier to assemble and more professional-looking than traditional Cartesian RepRaps. It’s also very fun to watch the Rostock Mini Pro print.
2. What are Traxxas 5347 u-joints?
Traxxas 5347 u-joints are mostly used in airplane models to give smooth movements. These are ball-socket joints that create very little friction when your Rostock Mini Pro’s arms move.
3. Why carbon fibre arms? kit
It’s super strong, light, and cool.
4. What about the Software?
You can use standard open-source software such as Repetier-host to control the Rostock Mini Pro.
5. What is a planetary gearbox coupled Nema 17 motor? kit
This is a Nema 17 motor with a built-in gearbox to increase output force. Traditional RepRaps use a printed gearbox structure (such as in Greg’s extruder) to achieve the same end; however, planetary gearbox is much more precise and more reliable as well.
Assembly Build Notes Delta 3D Printer kit
To see how the Rostock mini is assembled, Assembly is as follows:
- Begin by constructing each of the three towers, starting with the motor end, then the idler end, followed by the carriage, and then putting it all together to complete the tower.
- Complete the frame by attaching the motor ends of each tower to the lower frame before attaching the upper frame to the idler ends.
- Assemble the end effector platform, assembling and attaching the diagonal rods as you go. Delta 3D Printer kit
- Attach the ends of each diagonal rod to the carriages on each tower to complete the mechanical assembly.
- Finally, install the electronics, mount the extruder, and complete the wiring.
- Newest firmware is being optimized by my company ,and then loaded on mainboard, please do not upgrade The firmware by you self.
Delta 3D Printer kit
